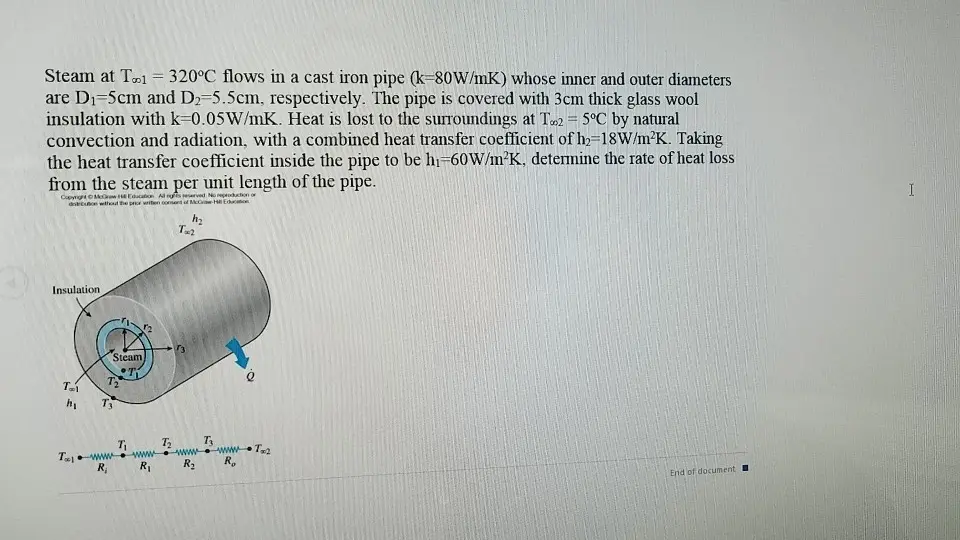

Steam at T1 =320°C flows in a cast iron pipe (k-80W/mK) whose inner and outer diameters are D₁=5cm and D2-5.5cm, respectively. The pipe is covered with 3cm thick glass wool insulation with k=0.05W/mK. Heat is lost to the surroundings at T2 = 5°C by natural convection and radiation, with a combined heat transfer coefficient of h₂-18W/m²K. Taking the heat transfer coefficient inside the pipe to be hi=60W/m²K, determine the rate of heat loss from the steam per unit length of the pipe. Copyright © McGrew Education All sus reserved. No reproduction or dsbution without the prior written consent of McGraw Hill Education Insulation T hi Ty Steam h₂ Tx2 T₁ T₂ T3 Tawwwwwww wwww.T2 R₁ R₁ R₂ R₁ End of document I
