السؤال
Transcribed Image Text:

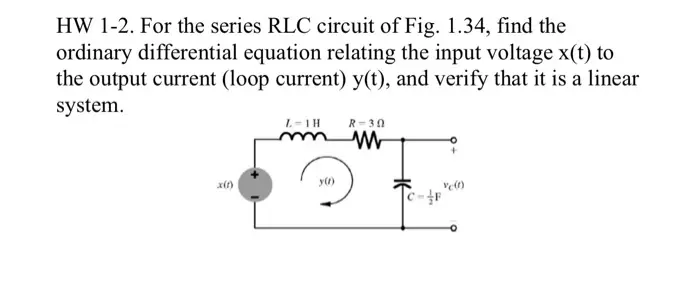

HW 1-2. For the series RLC circuit of Fig. 1.34, find the
ordinary differential equation relating the input voltage x(t) to
the output current (loop current) y(t), and verify that it is a linear
system.
L-1H
R-30
w
x(1)
y(1)
Vc(1)
C-F
