السؤال
Transcribed Image Text:

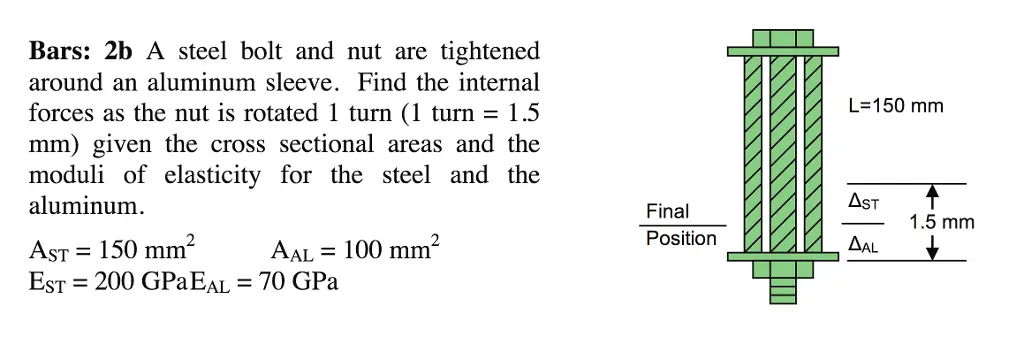

Bars: 2b A steel bolt and nut are tightened
around an aluminum sleeve. Find the internal
forces as the nut is rotated 1 turn (1 turn = 1.5
mm) given the cross sectional areas and the
moduli of elasticity for the steel and the
aluminum.
AAL = 100 mm²
AST = 150 mm²
EST 200 GPaEAL = 70 GPa
L=150 mm
AST
Final
1.5 mm
Position
AAL
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
