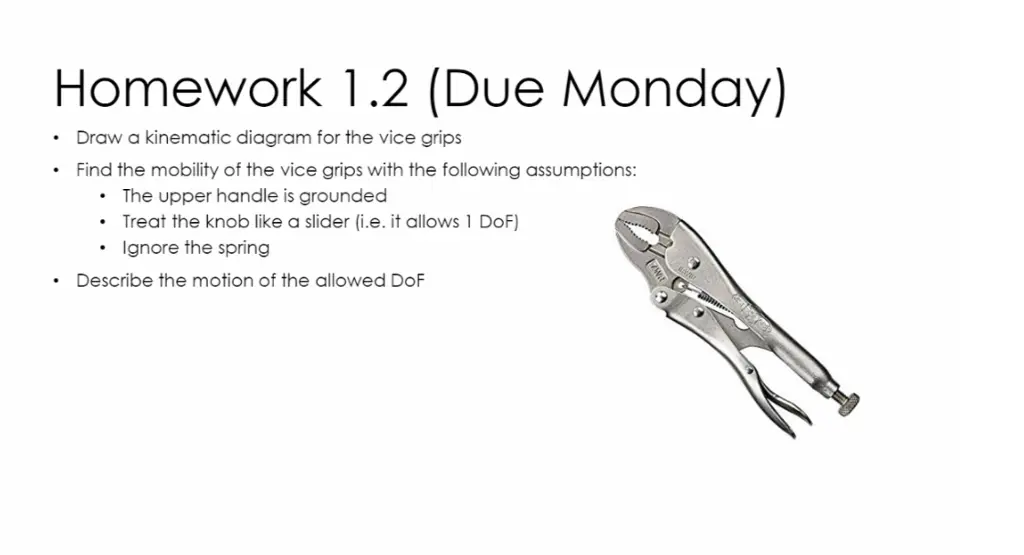

Homework 1.2 (Due Monday) • Draw a kinematic diagram for the vice grips • Find the mobility of the vice grips with the following assumptions: ⚫ The upper handle is grounded • Treat the knob like a slider (i.e. it allows 1 DoF) . Ignore the spring . Describe the motion of the allowed DoF
