السؤال

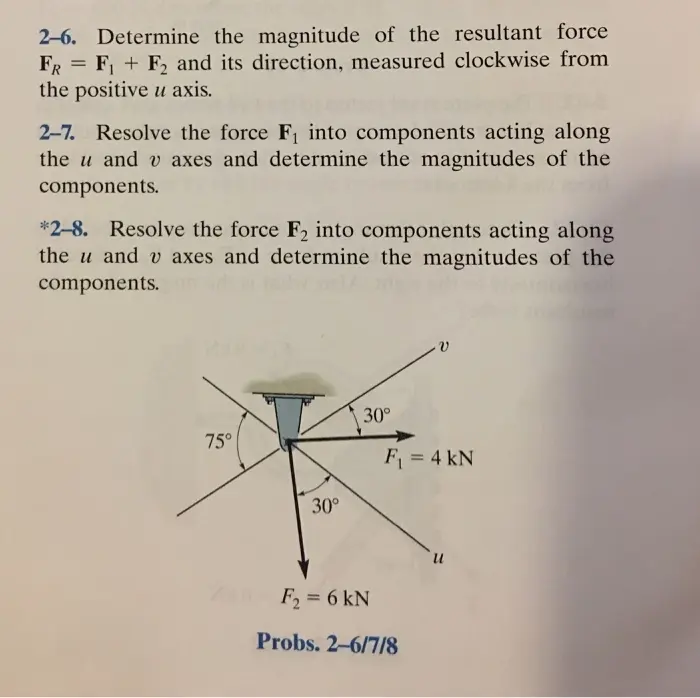

Transcribed Image Text:
2-6. Determine the magnitude of the resultant force
FR F₁ F2 and its direction, measured clockwise from
the positive u axis.
=
2-7. Resolve the force F₁ into components acting along
the u and v axes and determine the magnitudes of the
components.
*2-8. Resolve the force F2 into components acting along
the u and v axes and determine the magnitudes of the
components.
75°
30°
30°
F₁ = 4 kN
VF2=6kN
F2 = 6 kN
Probs. 2-6/7/8
น
