السؤال
Transcribed Image Text:

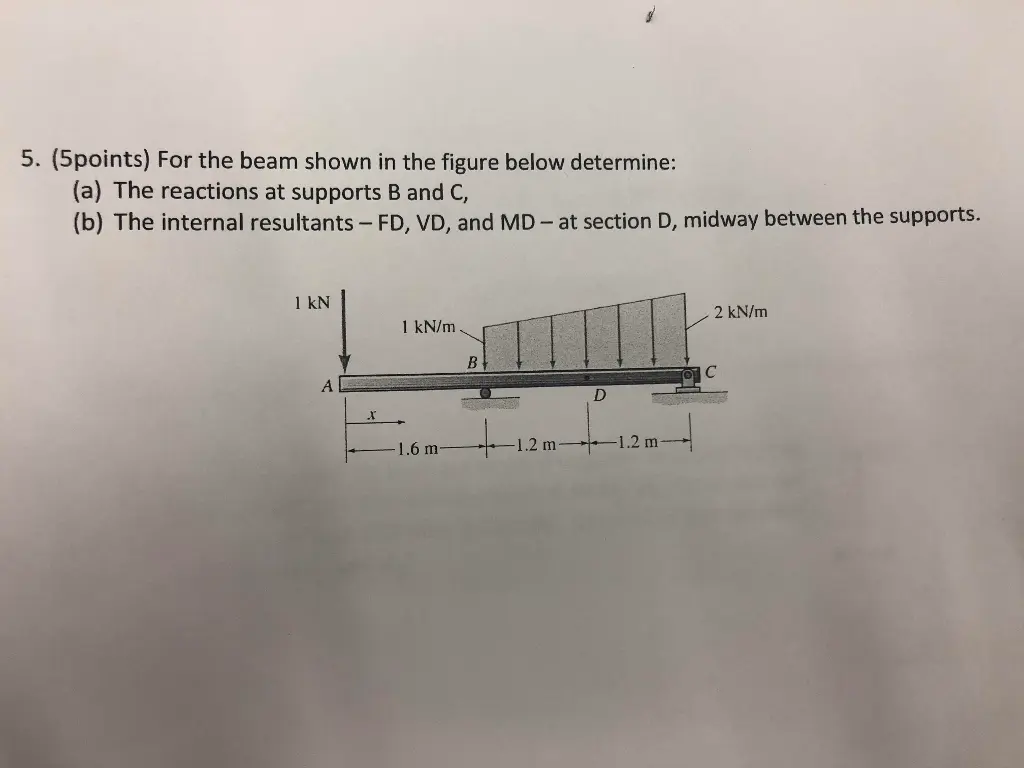

5. (5points) For the beam shown in the figure below determine:
(a) The reactions at supports B and C,
(b) The internal resultants - FD, VD, and MD - at section D, midway between the supports.
1 kN
A
1 kN/m
B
C
D
1.6 m
-1.2 m
1.2 m
2 kN/m
