السؤال
Transcribed Image Text:

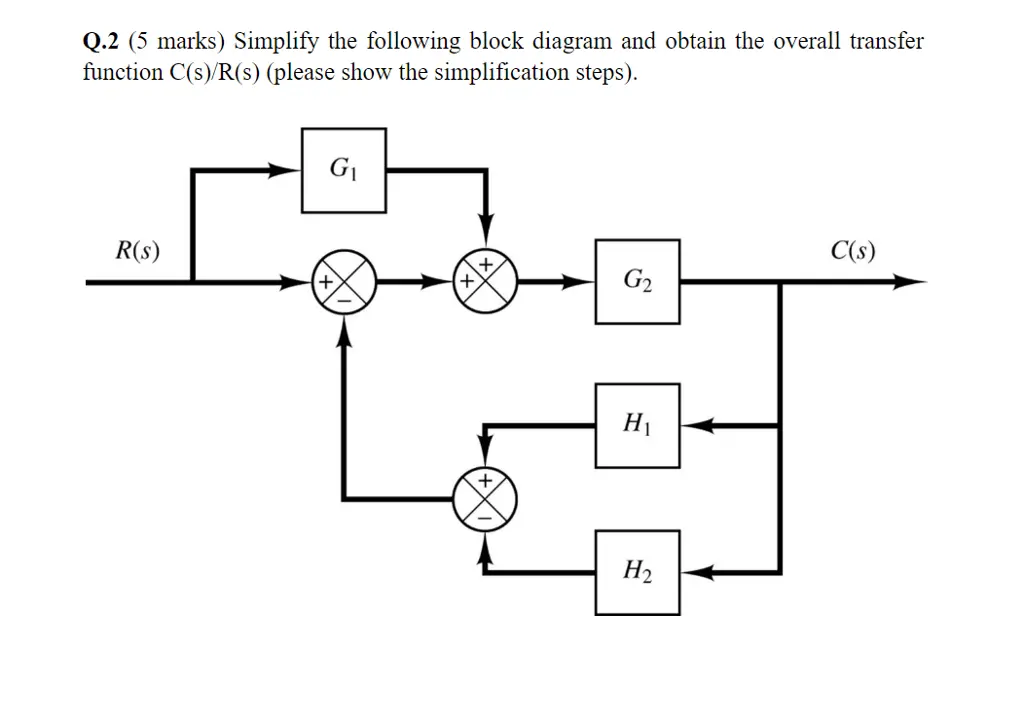

Q.2 (5 marks) Simplify the following block diagram and obtain the overall transfer
function C(s)/R(s) (please show the simplification steps).
R(s)
5
G₁
C(s)
G2
H₁
H2
