السؤال
Transcribed Image Text:

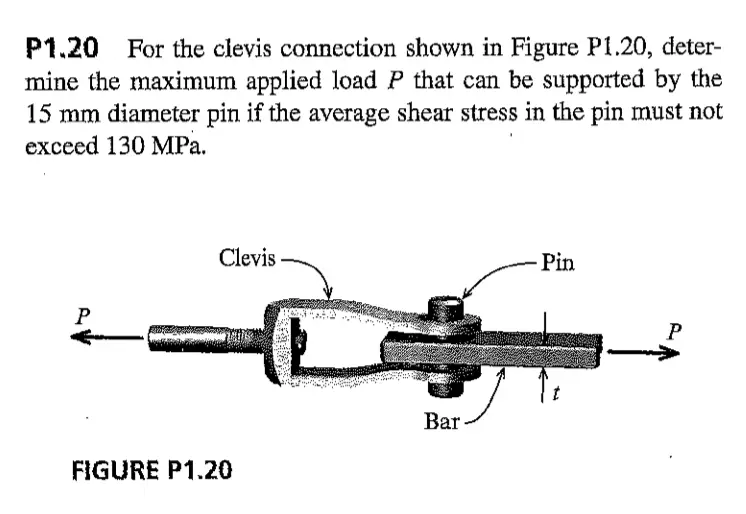

P1.20
For the clevis connection shown in Figure P1.20, deter-
mine the maximum applied load P that can be supported by the
15 mm diameter pin if the average shear stress in the pin must not
exceed 130 MPa.
P
Clevis
FIGURE P1.20
Bar
Pin
P
