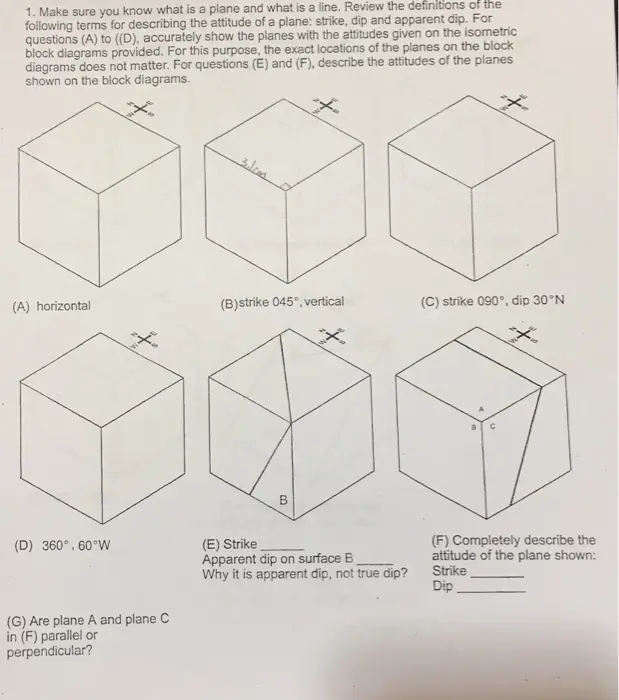

1. Make sure you know what is a plane and what is a line. Review the definitions of the following terms for describing the attitude of a plane: strike, dip and apparent dip. For questions (A) to ((D), accurately show the planes with the attitudes given on the isometric block diagrams provided. For this purpose, the exact locations of the planes on the block diagrams does not matter. For questions (E) and (F), describe the attitudes of the planes shown on the block diagrams. 3.1 (A) horizontal (B)strike 045°, vertical (C) strike 090°, dip 30°N B (D) 360°, 60°W (G) Are plane A and plane C in (F) parallel or perpendicular? (E) Strike Apparent dip on surface B Why it is apparent dip, not true dip? (F) Completely describe the attitude of the plane shown: Strike Dip
