السؤال
Transcribed Image Text:

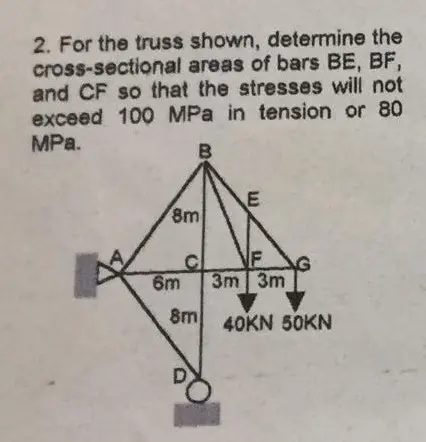

2. For the truss shown, determine the
cross-sectional areas of bars BE, BF,
and CF so that the stresses will not
exceed 100 MPa in tension or 80
MPa.
B
E
8m
C
F
6m
3m 3m
8m
40KN 50KN
