السؤال
Transcribed Image Text:

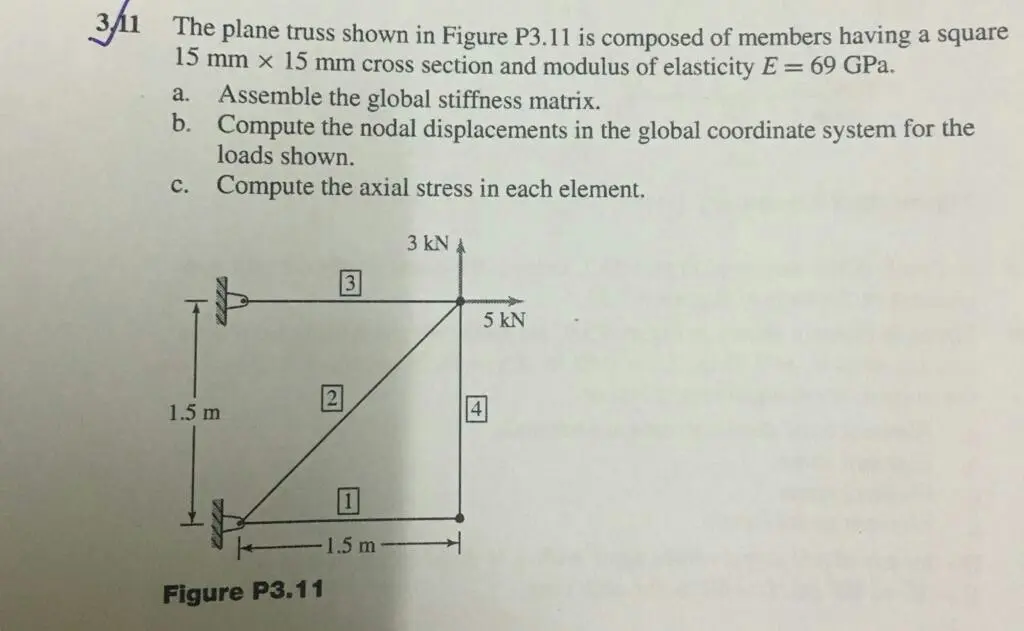

3/11 The plane truss shown in Figure P3.11 is composed of members having a square
15 mm x 15 mm cross section and modulus of elasticity E = 69 GPa.
a.
Assemble the global stiffness matrix.
b. Compute the nodal displacements in the global coordinate system for the
loads shown.
c. Compute the axial stress in each element.
777
3
3 kN A
5 kN
1.5 m
2
1.5 m
Figure P3.11
