السؤال
Transcribed Image Text:

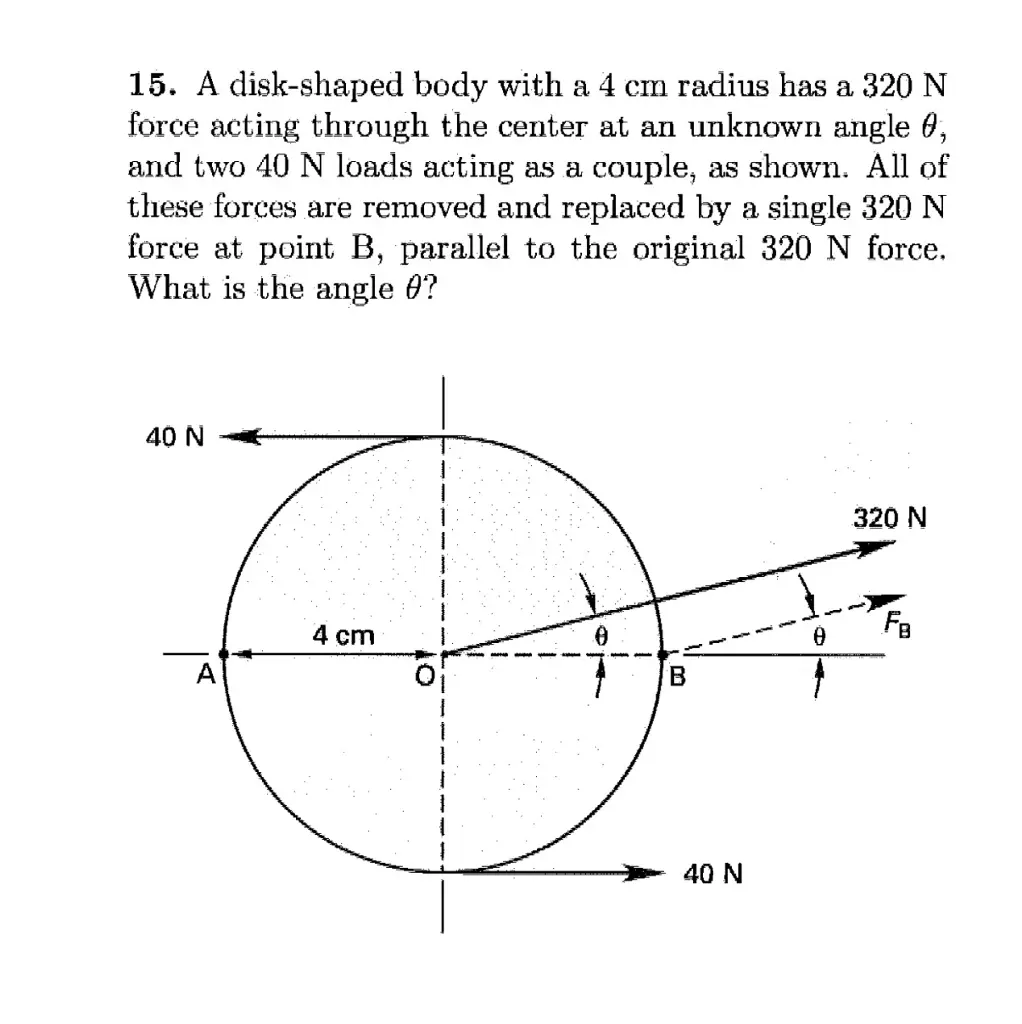

15. A disk-shaped body with a 4 cm radius has a 320 N
force acting through the center at an unknown angle 0,
and two 40 N loads acting as a couple, as shown. All of
these forces are removed and replaced by a single 320 N
force at point B, parallel to the original 320 N force.
What is the angle 0?
40 N
A
320 N
FB
4 cm
B
40 N
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
