السؤال
Transcribed Image Text:

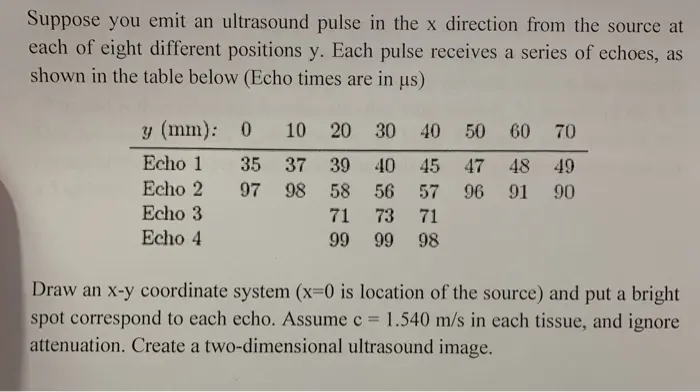

Suppose you emit an ultrasound pulse in the x direction from the source at
each of eight different positions y. Each pulse receives a series of echoes, as
shown in the table below (Echo times are in us)
y (mm): 0 10 20 30 40 50 60 70
Echo 1 35 37 39
40 45 47 48 49
Echo 2 97 98
58
56 57 96 91 90
Echo 3
71
73
71
Echo 4
99 99 98
Draw an x-y coordinate system (x=0 is location of the source) and put a bright
spot correspond to each echo. Assume c = 1.540 m/s in each tissue, and ignore
attenuation. Create a two-dimensional ultrasound image.
