السؤال

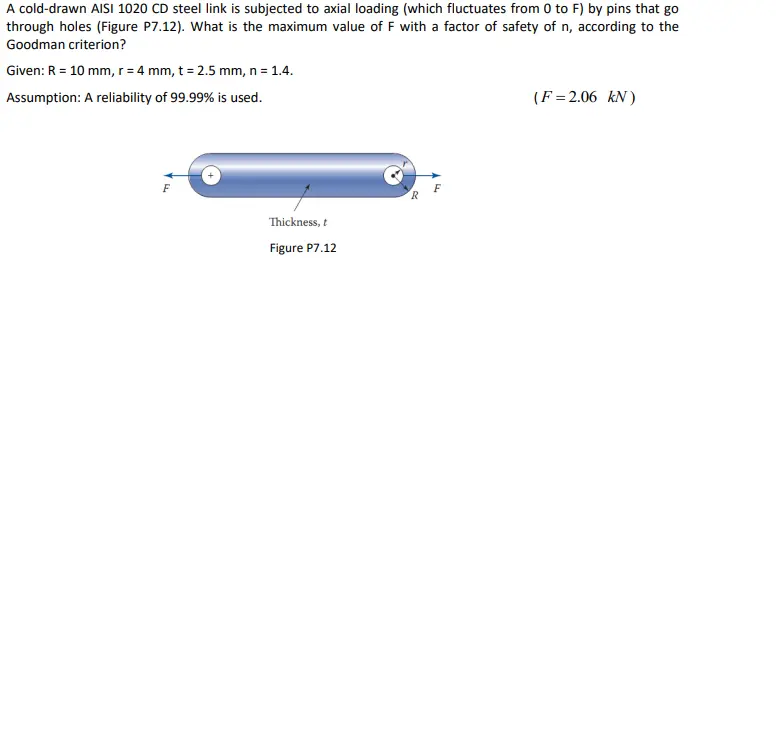

Transcribed Image Text:
A cold-drawn AISI 1020 CD steel link is subjected to axial loading (which fluctuates from 0 to F) by pins that go
through holes (Figure P7.12). What is the maximum value of F with a factor of safety of n, according to the
Goodman criterion?
Given: R = 10 mm, r = 4 mm, t = 2.5 mm, n = 1.4.
Assumption: A reliability of 99.99% is used.
(F=2.06 kN)
F
Thickness, t
Figure P7.12
R
check_circle الجواب — حل مفصل خطوة بخطوة
