السؤال
Transcribed Image Text:

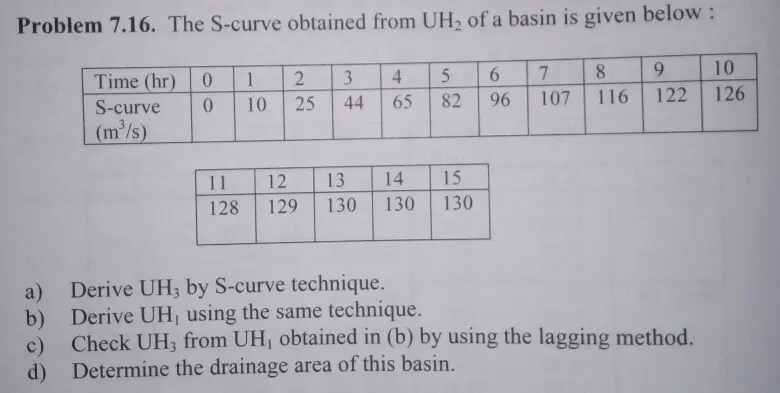

Problem 7.16. The S-curve obtained from UH2 of a basin is given below:
Time (hr)
S-curve
0
1
2
3
4
5
6
7
8
9
10
0
10
25
44
55
65
82 96
107
116
122
126
(m³/s)
11
12
13
14 15
128 129 130
130
130
a) Derive UH3 by S-curve technique.
b) Derive UH, using the same technique.
c)
Check UH3 from UH, obtained in (b) by using the lagging method.
d) Determine the drainage area of this basin.
