السؤال
Transcribed Image Text:

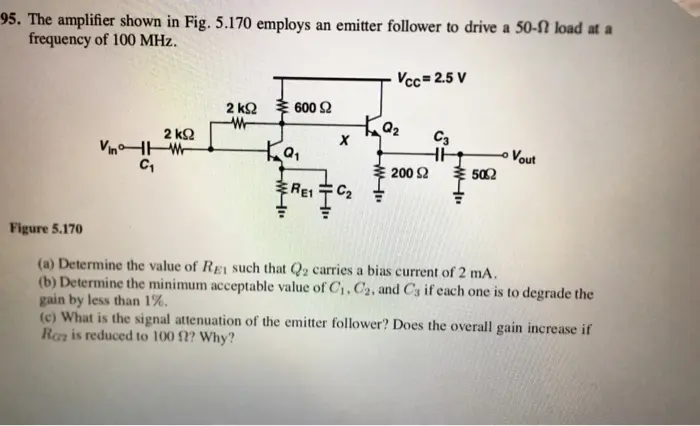

95. The amplifier shown in Fig. 5.170 employs an emitter follower to drive a 50-2 load at a
frequency of 100 MHz.
2 ΚΩ Ξ 600 Ω
Vcc=2.5 V
w
2 ΚΩ
C₁
W
x
HH
ERE1 C2
C3
Vout
€ 200 2
€ 502
Figure 5.170
(a) Determine the value of REI such that Q2 carries a bias current of 2 mA.
(b) Determine the minimum acceptable value of C1, C2, and C3 if each one is to degrade the
gain by less than 1%.
(c) What is the signal attenuation of the emitter follower? Does the overall gain increase if
Raz is reduced to 100 ?? Why?
