السؤال
Transcribed Image Text:
=
0.6 and

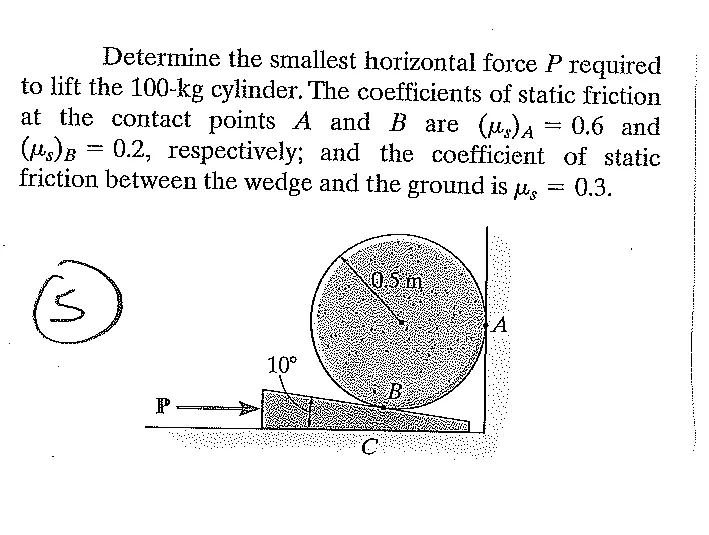

Determine the smallest horizontal force P required
to lift the 100-kg cylinder. The coefficients of static friction
at the contact points A and B are (μs) A
(s)B 0.2, respectively; and the coefficient of static
friction between the wedge and the ground is us
-
=
0.3.
S
P
10°
0.5m
B
A
