السؤال
Transcribed Image Text:
w2

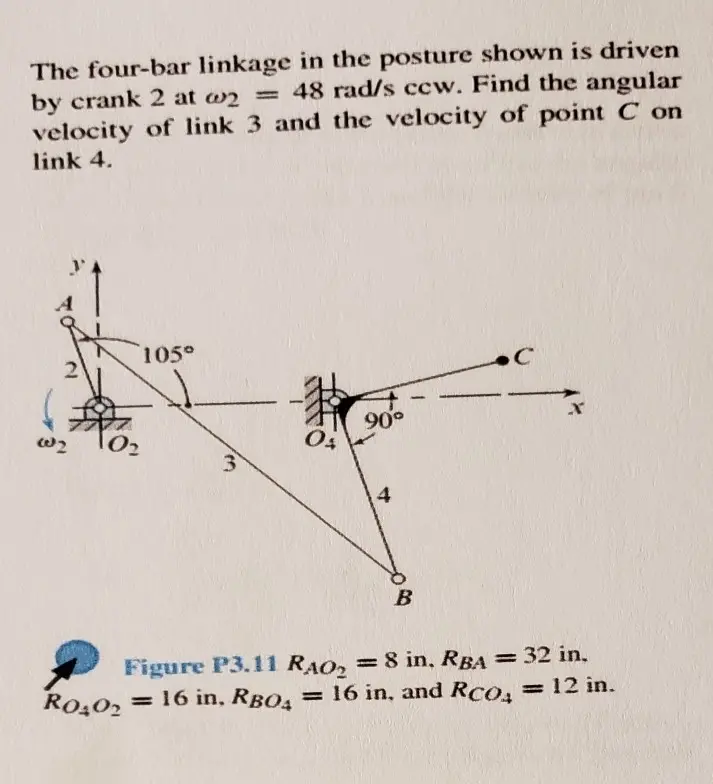

The four-bar linkage in the posture shown is driven
by crank 2 at w2 = 48 rad/s ccw. Find the angular
velocity of link 3 and the velocity of point C on
link 4.
105°
3,
90°
4
B
C
Figure P3.11 RAO2 = 8 in, RBA = 32 in.
r
R0402 = 16 in, RBOA
= 16 in, and RCO = 12 in.
