السؤال
Transcribed Image Text:

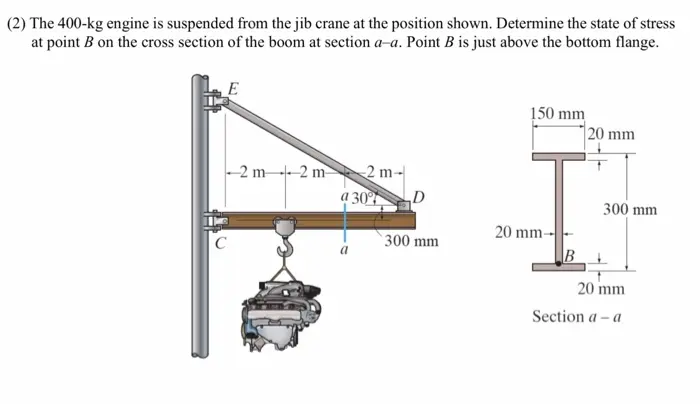

(2) The 400-kg engine is suspended from the jib crane at the position shown. Determine the state of stress
at point B on the cross section of the boom at section a-a. Point B is just above the bottom flange.
C
150 mm
20 mm
-2 m2 m
2 m-
a 30%
D
300 mm
20 mm-
300 mm
B
20 mm
Section a-a
