السؤال
Transcribed Image Text:

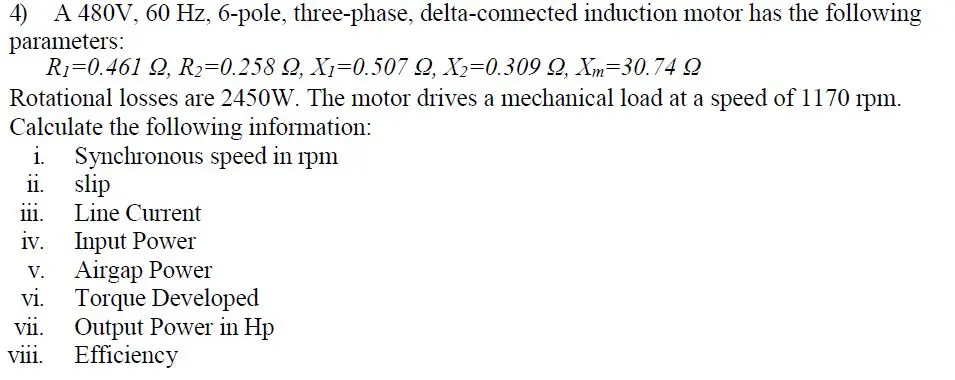

4) A 480V, 60 Hz, 6-pole, three-phase, delta-connected induction motor has the following
parameters:
R1 0.461 Q, R2=0.258 Q, X1=0.507 Q, X2-0.309 2, Xm-30.74
Rotational losses are 2450W. The motor drives a mechanical load at a speed of 1170 rpm.
Calculate the following information:
Synchronous speed in rpm
slip
Line Current
i.
ii.
111.
iv.
Input Power
V.
Airgap Power
vi.
Torque Developed
vii.
Output Power in Hp
viii.
Efficiency
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
