السؤال

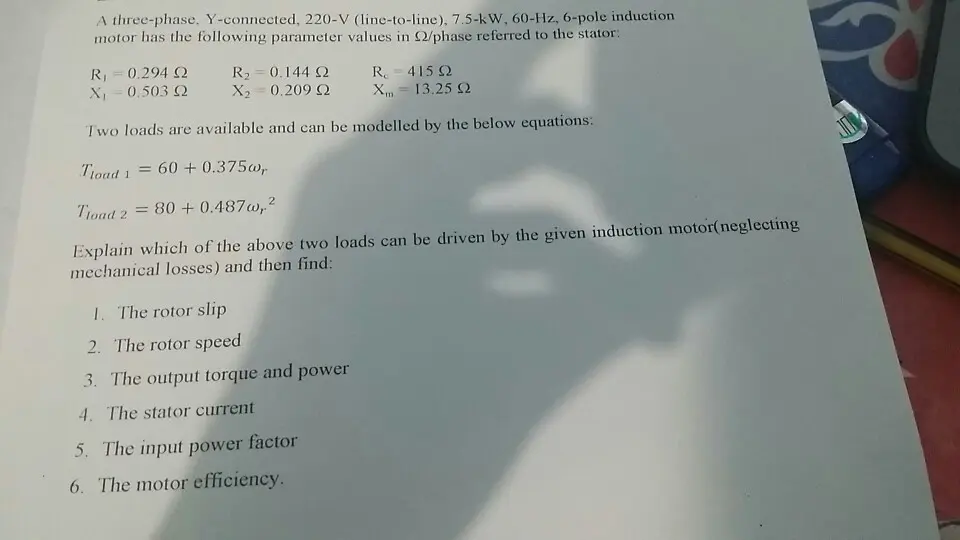

Transcribed Image Text:
A three-phase. Y-connected, 220-V (line-to-line), 7.5-kW, 60-Hz, 6-pole induction
motor has the following parameter values in Q2/phase referred to the stator:
R₁ = 0.294 2 R2
X₁ =0.503 2 X2
0.144 2
0.209 2
R. 415 Q
X
13.25
Two loads are available and can be modelled by the below equations:
Tload 1 = 60+0.375w,
Tload 2=80+ 0.487w,2
Explain which of the above two loads can be driven by the given induction motor(neglecting
mechanical losses) and then find:
1. The rotor slip
2. The rotor speed
3. The output torque and power
4. The stator current
5. The input power factor
6. The motor efficiency.
J
