السؤال

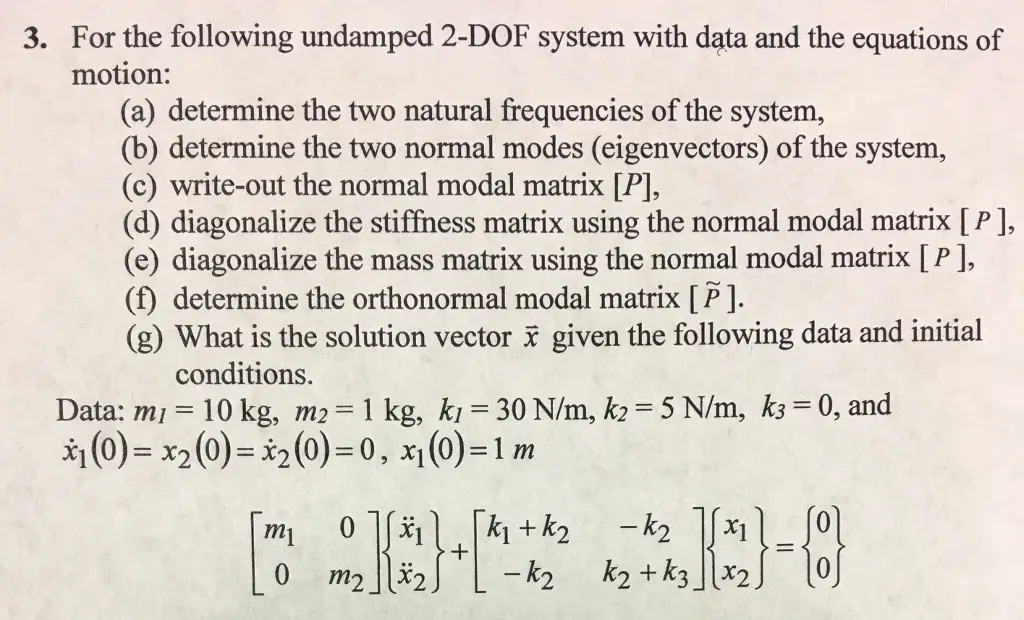

Transcribed Image Text:
3. For the following undamped 2-DOF system with data and the equations of
motion:
(a) determine the two natural frequencies of the system,
(b) determine the two normal modes (eigenvectors) of the system,
(c) write-out the normal modal matrix [P],
(d) diagonalize the stiffness matrix using the normal modal matrix [P],
(e) diagonalize the mass matrix using the normal modal matrix [P],
(f) determine the orthonormal modal matrix [P].
(g) What is the solution vector given the following data and initial
conditions.
Data: mi = 10 kg, m2 = 1 kg, k₁ = 30 N/m, k2 = 5 N/m, k3 = 0, and
x1 (0)= x2 (0)=x2 (0)=0, x1(0)=1m
mi
0x1
-k2
Sor
+
=
0 m2 2
-k2 k₂+k3x2)
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
