السؤال

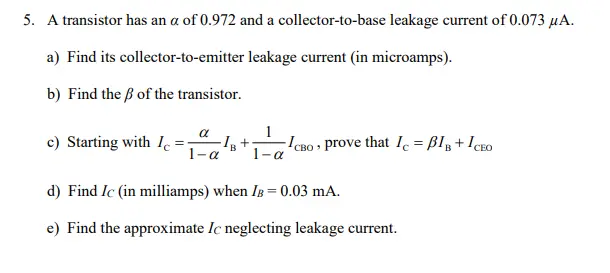

Transcribed Image Text:
5. A transistor has an a of 0.972 and a collector-to-base leakage current of 0.073 μA.
a) Find its collector-to-emitter leakage current (in microamps).
b) Find the ẞ of the transistor.
a
c) Starting with I=:
-1B +
ICBO prove that IC = BIB + ICEO
1-a
1-a
d) Find Ic (in milliamps) when IB = 0.03 mA.
e) Find the approximate Ic neglecting leakage current.
