السؤال

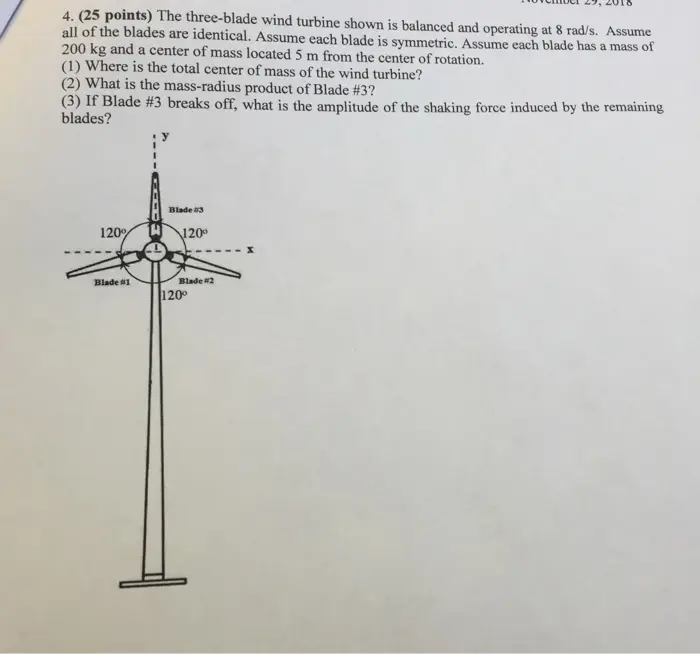

Transcribed Image Text:
4. (25 points) The three-blade wind turbine shown is balanced and operating at 8 rad/s. Assume
all of the blades are identical. Assume each blade is symmetric. Assume each blade has a mass of
200 kg and a center of mass located 5 m from the center of rotation.
(1) Where is the total center of mass of the wind turbine?
(2) What is the mass-radius product of Blade #3?
(3) If Blade #3 breaks off, what is the amplitude of the shaking force induced by the remaining
blades?
120%
Blade #3
120°
Blade #1
Blade #2
120°
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
