السؤال
Transcribed Image Text:

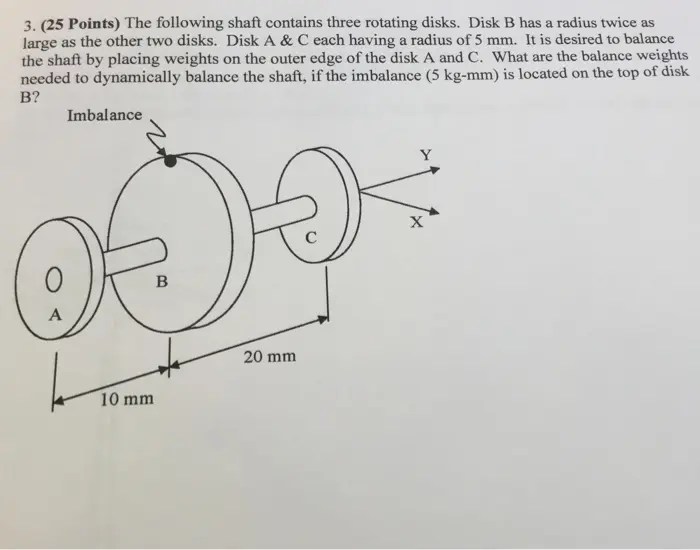

3. (25 Points) The following shaft contains three rotating disks. Disk B has a radius twice as
large as the other two disks. Disk A & C each having a radius of 5 mm. It is desired to balance
the shaft by placing weights on the outer edge of the disk A and C. What are the balance weights
needed to dynamically balance the shaft, if the imbalance (5 kg-mm) is located on the top of disk
B?
Imbalance
A
B
10 mm
20 mm
C
X
