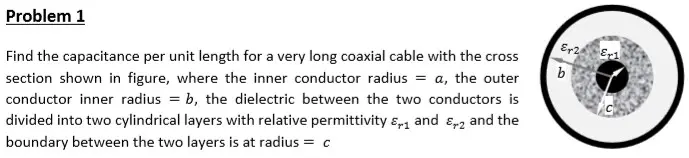

Problem 1 Find the capacitance per unit length for a very long coaxial cable with the cross section shown in figure, where the inner conductor radius = a, the outer conductor inner radius = b, the dielectric between the two conductors is divided into two cylindrical layers with relative permittivity 1 and 2 and the boundary between the two layers is at radius = c Er2 E1 b
