السؤال

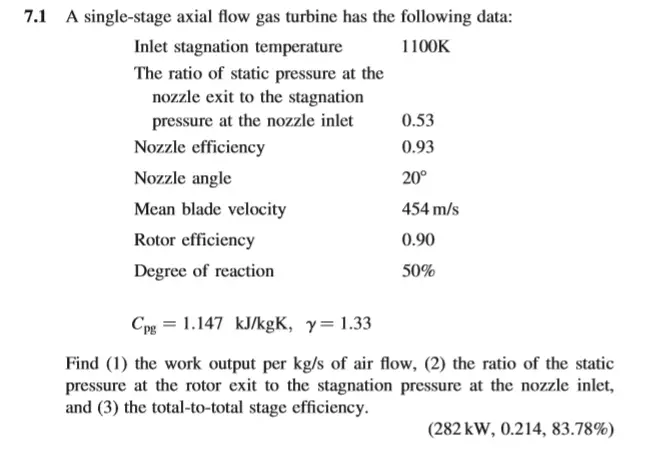

Transcribed Image Text:
7.1 A single-stage axial flow gas turbine has the following data:
Inlet stagnation temperature
The ratio of static pressure at the
nozzle exit to the stagnation
1100K
pressure at the nozzle inlet
0.53
Nozzle efficiency
0.93
Nozzle angle
20°
Mean blade velocity
454 m/s
Rotor efficiency
0.90
Degree of reaction
50%
Cpg 1.147 kJ/kgK, y = 1.33
Find (1) the work output per kg/s of air flow, (2) the ratio of the static
pressure at the rotor exit to the stagnation pressure at the nozzle inlet,
and (3) the total-to-total stage efficiency.
(282 kW, 0.214, 83.78%)
