السؤال

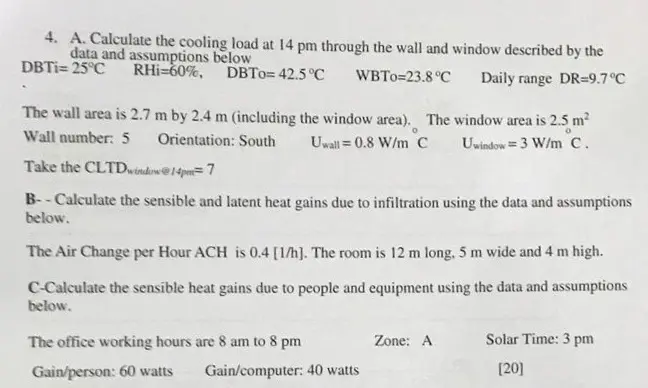

Transcribed Image Text:
4. A. Calculate the cooling load at 14 pm through the wall and window described by the
data and assumptions below
DBTi=25°C RHI-60%, DBTo= 42.5 °C
WBT0=23.8°C
Daily range DR-9.7°C
The wall area is 2.7 m by 2.4 m (including the window area). The window area is 2.5 m²
Wall number: 5
Orientation: South
Take the CLTDwindow@14pm=7
°
Uwall 0.8 W/m C Uwindow 3 W/m C.
B--Calculate the sensible and latent heat gains due to infiltration using the data and assumptions
below.
The Air Change per Hour ACH is 0.4 [1/h]. The room is 12 m long, 5 m wide and 4 m high.
C-Calculate the sensible heat gains due to people and equipment using the data and assumptions
below.
The office working hours are 8 am to 8 pm
Gain/person: 60 watts
Zone: A
Solar Time: 3 pm
Gain/computer: 40 watts
[20]
