السؤال
Transcribed Image Text:

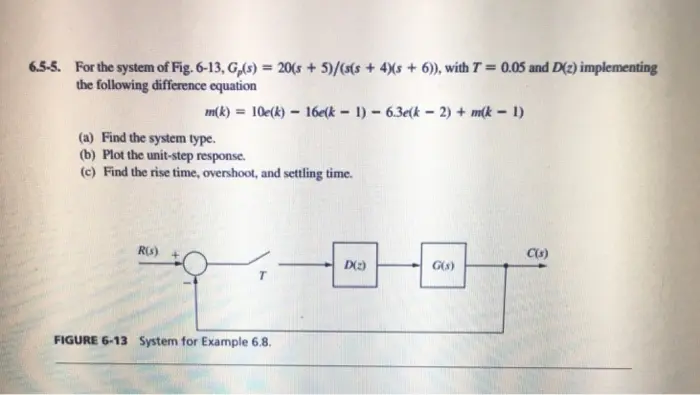

6.5-5. For the system of Fig. 6-13, G,(s) = 20(s +5)/(s(s + 4)(s + 6)), with T = 0.05 and D(2) implementing
the following difference equation
m(k)
(a) Find the system type.
(b) Plot the unit-step response.
10e(k) 16e(k-1)-6.3e(k-2)+m(k-1)
-
(c) Find the rise time, overshoot, and settling time.
R(s)
FIGURE 6-13 System for Example 6.8.
C(3)
D(2)
G(s)
