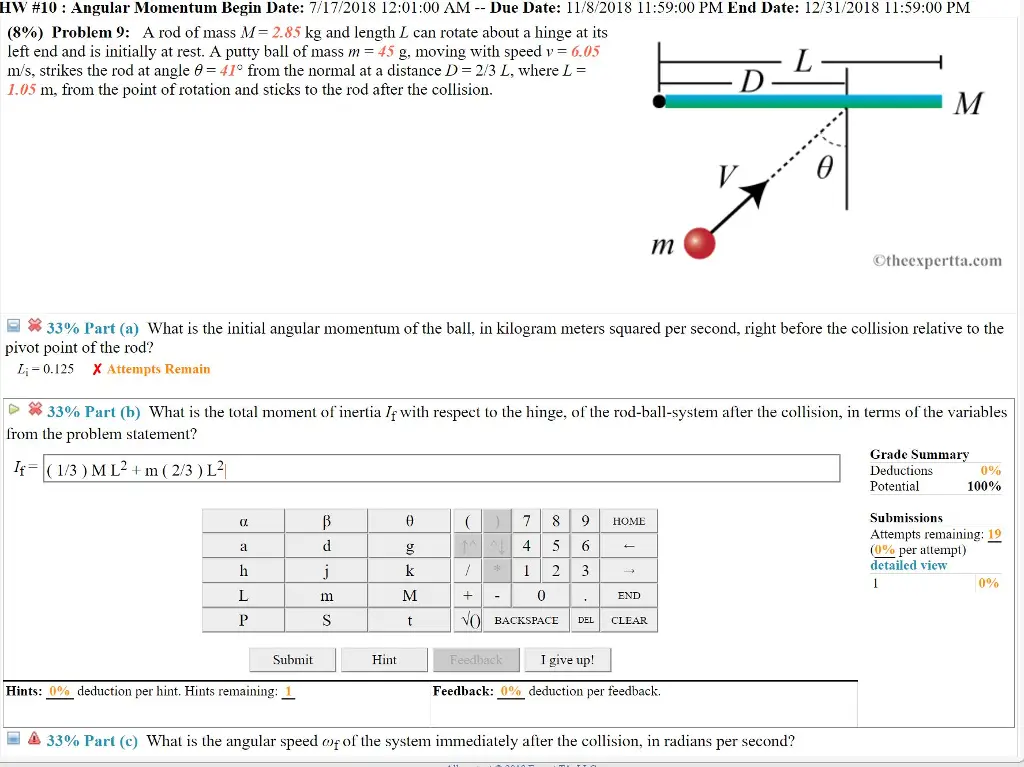

HW #10: Angular Momentum Begin Date: 7/17/2018 12:01:00 AM -- Due Date: 11/8/2018 11:59:00 PM End Date: 12/31/2018 11:59:00 PM (8%) Problem 9: A rod of mass M= 2.85 kg and length L can rotate about a hinge at its left end and is initially at rest. A putty ball of mass m = 45 g, moving with speed v = 6.05 m/s, strikes the rod at angle = 41° from the normal at a distance D = 2/3 L, where L = 1.05 m, from the point of rotation and sticks to the rod after the collision. m M Otheexpertta.com 33% Part (a) What is the initial angular momentum of the ball, in kilogram meters squared per second, right before the collision relative to the pivot point of the rod? L 0.125 X Attempts Remain 33% Part (b) What is the total moment of inertia If with respect to the hinge, of the rod-ball-system after the collision, in terms of the variables from the problem statement? If (1/3) ML2+m (2/3) L² () 14 Grade Summary Deductions Potential Submissions 0% 100% Attempts remaining: 19 (0% per attempt) detailed view α ẞ 0 7 8 9 HOME a d g 5 6 ← h j k * 1 2 3 1 L m M + - 0 END P S t VO BACKSPACE DEL CLEAR Submit Hint Feedback I give up! 0% Hints: 0% deduction per hint. Hints remaining: 1 Feedback: 0% deduction per feedback. A33% Part (c) What is the angular speed of of the system immediately after the collision, in radians per second?
