السؤال
Transcribed Image Text:

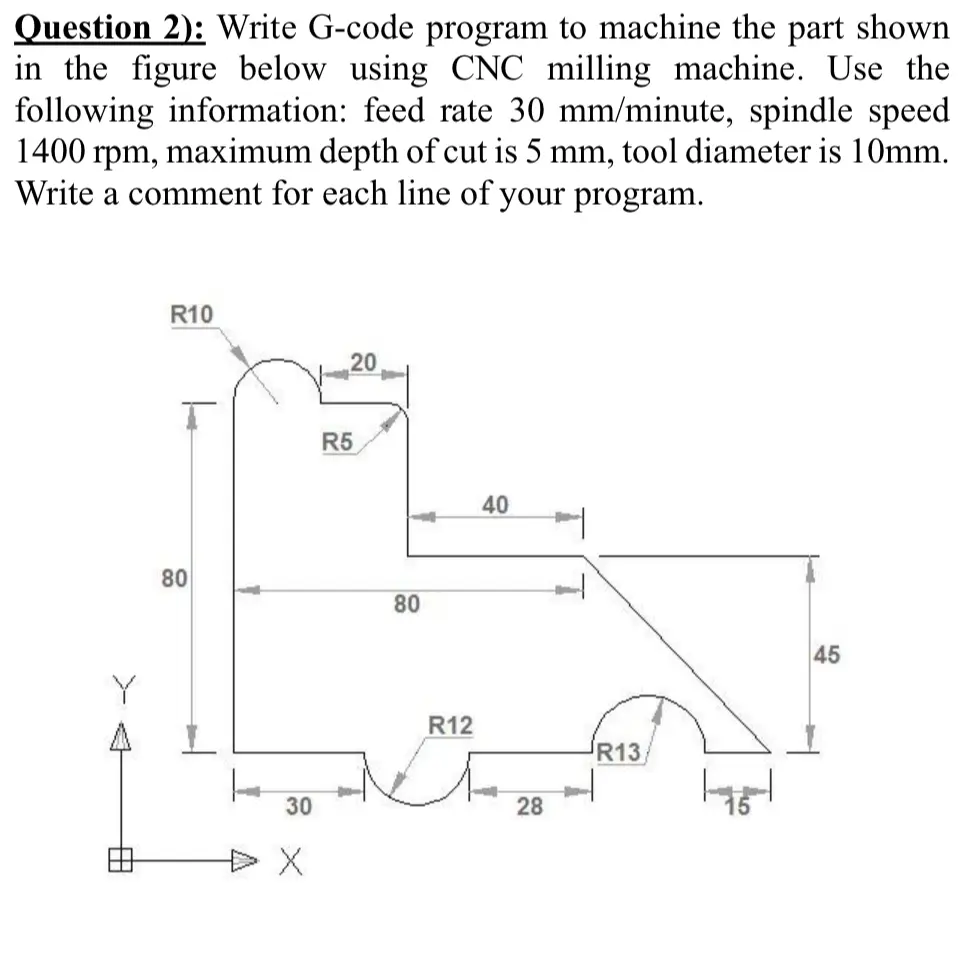

Question 2): Write G-code program to machine the part shown
in the figure below using CNC milling machine. Use the
following information: feed rate 30 mm/minute, spindle speed
1400 rpm, maximum depth of cut is 5 mm, tool diameter is 10mm.
Write a comment for each line of your program.
R10
20
R5
40
80
80
30
R12
28
R13
151
45
