السؤال

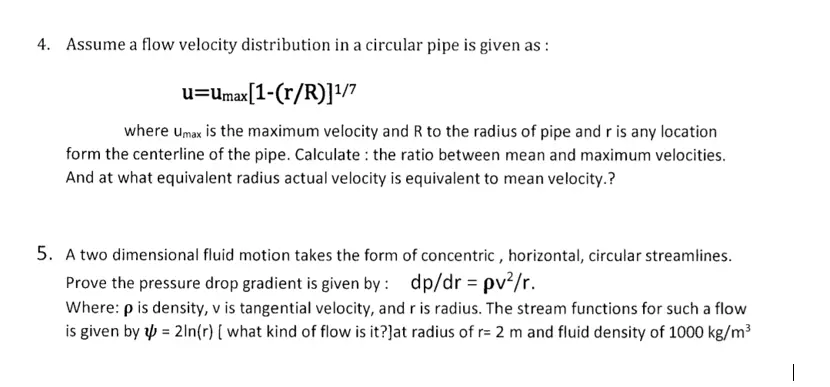

Transcribed Image Text:
4. Assume a flow velocity distribution in a circular pipe is given as :
u=umax[1-(r/R)]1/7
where Umax is the maximum velocity and R to the radius of pipe and r is any location
form the centerline of the pipe. Calculate the ratio between mean and maximum velocities.
And at what equivalent radius actual velocity is equivalent to mean velocity.?
5. A two dimensional fluid motion takes the form of concentric, horizontal, circular streamlines.
Prove the pressure drop gradient is given by: dp/dr = pv²/r.
Where: p is density, v is tangential velocity, and r is radius. The stream functions for such a flow
is given by 2ln(r) [what kind of flow is it?]at radius of r= 2 m and fluid density of 1000 kg/m³
