السؤال
Transcribed Image Text:

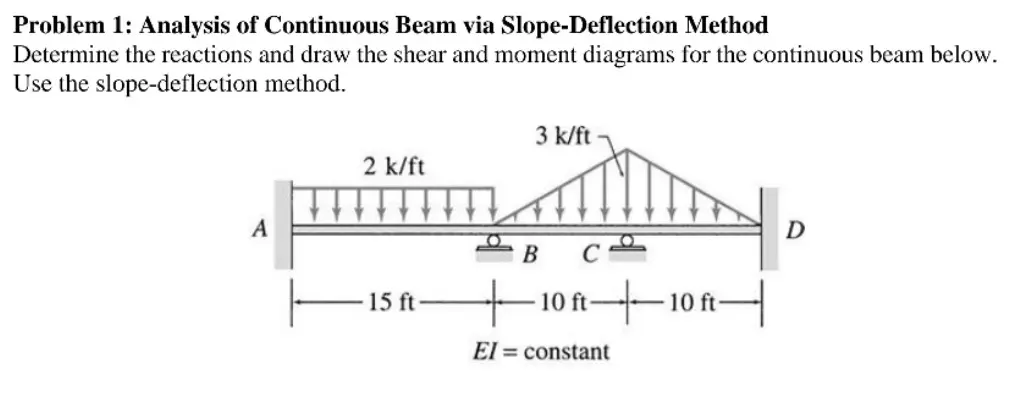

Problem 1: Analysis of Continuous Beam via Slope-Deflection Method
Determine the reactions and draw the shear and moment diagrams for the continuous beam below.
Use the slope-deflection method.
A
3 k/ft
2 k/ft
15 ft-
B
10 ft 10 ft-
-10 t-
El constant
D
