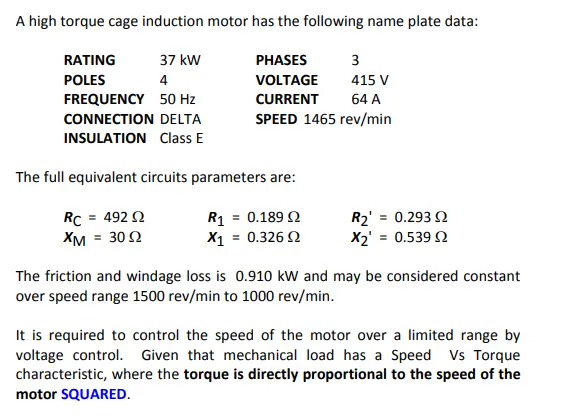

A high torque cage induction motor has the following name plate data:
RATING
POLES
37 kW
4
FREQUENCY 50 Hz
CONNECTION DELTA
INSULATION Class E
PHASES
3
VOLTAGE
415 V
CURRENT
64 A
SPEED 1465 rev/min
The full equivalent circuits parameters are:
RC = 4922
XM = 302
R₁ = 0.1892
R2' = 0.293 2
Χ1 = 0.326 Ω
X2' = 0.5392
The friction and windage loss is 0.910 kW and may be considered constant
over speed range 1500 rev/min to 1000 rev/min.
It is required to control the speed of the motor over a limited range by
voltage control. Given that mechanical load has a Speed Vs Torque
characteristic, where the torque is directly proportional to the speed of the
motor SQUARED.
Determine for a motor speed of 1380 rev/min:
3.1.1 the required stator line voltage;
3.1.2 the motor efficiency at 1380 rev/min;
[8 Marks]
[2 Marks]
3.1.3 comment on the suitability of running the motor in this reduced voltage
mode.
[2 Marks]
