السؤال

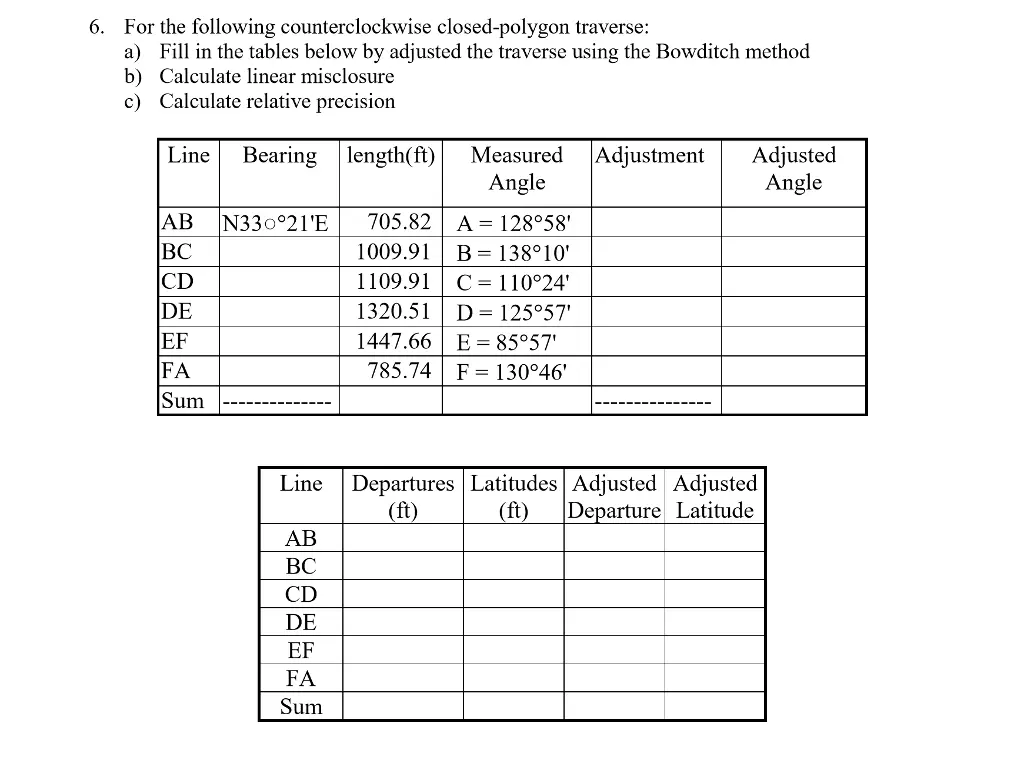

Transcribed Image Text:
6. For the following counterclockwise closed-polygon traverse:
a) Fill in the tables below by adjusted the traverse using the Bowditch method
b) Calculate linear misclosure
c) Calculate relative precision
Line
Bearing length(ft)
AB
N330°21'E
BC
Measured Adjustment
Angle
705.82 A = 128°58'
1009.91 B = 138°10'
Adjusted
Angle
CD
1109.91 C = 110°24'
DE
1320.51
D = 125°57'
EF
1447.66
E = 85°57'
FA
785.74
F = 130°46'
Sum
Line
Departures Latitudes Adjusted Adjusted
(ft)
(ft)
Departure Latitude
AB
BC
CD
DE
EF
FA
Sum
