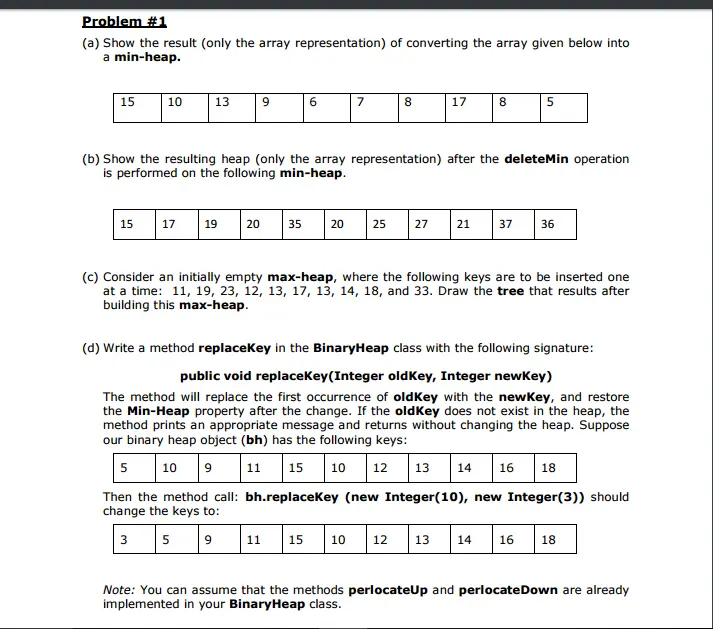

Problem #1 (a) Show the result (only the array representation) of converting the array given below into a min-heap. 15 10 13 9 6 7 8 17 8 5 (b) Show the resulting heap (only the array representation) after the deleteMin operation is performed on the following min-heap. 15 17 19 20 35 20 25 27 21 37 36 (c) Consider an initially empty max-heap, where the following keys are to be inserted one at a time: 11, 19, 23, 12, 13, 17, 13, 14, 18, and 33. Draw the tree that results after building this max-heap. (d) Write a method replaceKey in the BinaryHeap class with the following signature: public void replaceKey(Integer oldKey, Integer newKey) The method will replace the first occurrence of old Key with the newKey, and restore the Min-Heap property after the change. If the old Key does not exist in the heap, the method prints an appropriate message and returns without changing the heap. Suppose our binary heap object (bh) has the following keys: 5 10 9 Then the method call: bh.replaceKey (new Integer (10), new Integer(3)) should change the keys to: 11 15 10 12 13 14 16 18 3 5 9 11 15 10 12 13 14 16 18 Note: You can assume that the methods perlocateUp and perlocate Down are already implemented in your BinaryHeap class.
