السؤال
Transcribed Image Text:

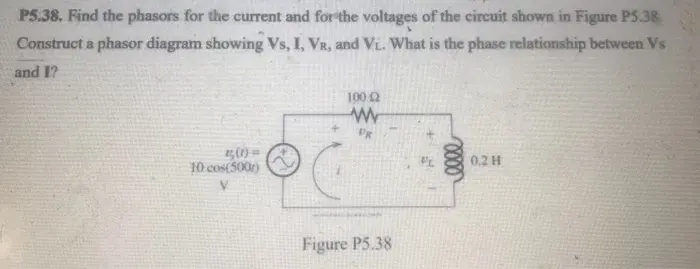

P5.38. Find the phasors for the current and for the voltages of the circuit shown in Figure P5.38
Construct a phasor diagram showing Vs, I, VR, and VL. What is the phase relationship between Vs
and I?
123(1)=
10 cos(500)
V
100 Ω
w
UR
Figure P5.38
0000
0.2 H
check_circle الجواب — حل مفصل خطوة بخطوة
