السؤال

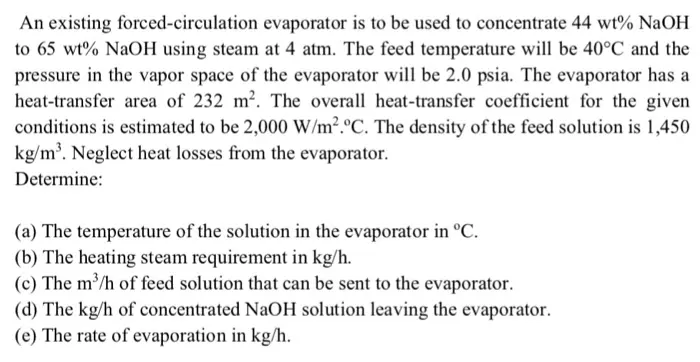

Transcribed Image Text:
An existing forced-circulation evaporator is to be used to concentrate 44 wt% NaOH
to 65 wt% NaOH using steam at 4 atm. The feed temperature will be 40°C and the
pressure in the vapor space of the evaporator will be 2.0 psia. The evaporator has a
heat-transfer area of 232 m². The overall heat-transfer coefficient for the given
conditions is estimated to be 2,000 W/m².°C. The density of the feed solution is 1,450
kg/m³. Neglect heat losses from the evaporator.
Determine:
(a) The temperature of the solution in the evaporator in °C.
(b) The heating steam requirement in kg/h.
(c) The m³/h of feed solution that can be sent to the evaporator.
(d) The kg/h of concentrated NaOH solution leaving the evaporator.
(e) The rate of evaporation in kg/h.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
