السؤال
Transcribed Image Text:
LIMSY

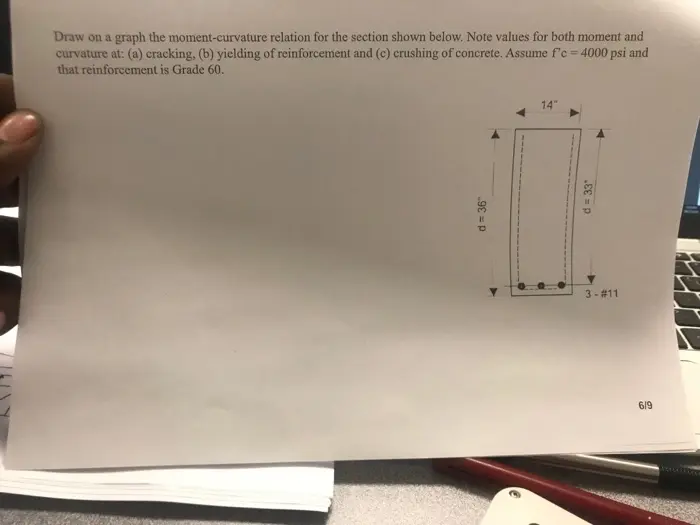

Draw on a graph the moment-curvature relation for the section shown below. Note values for both moment and
curvature at: (a) cracking, (b) yielding of reinforcement and (c) crushing of concrete. Assume f'c = 4000 psi and
that reinforcement is Grade 60.
d = 36"
14"
d = 33°
3-#11
6/9
