السؤال
Transcribed Image Text:
5.

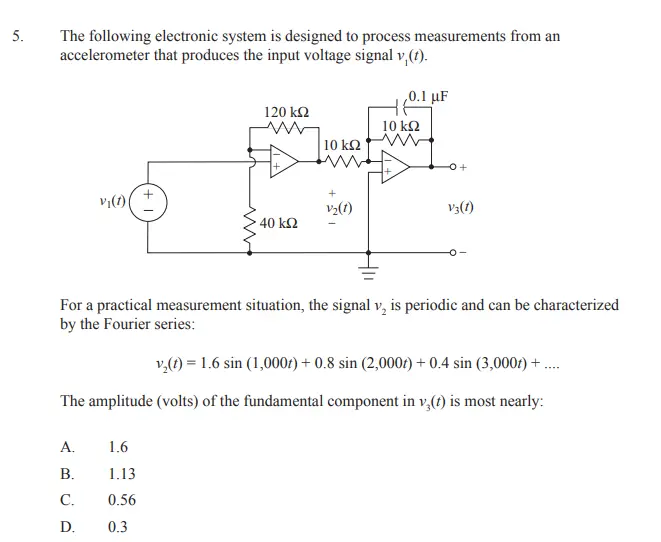

The following electronic system is designed to process measurements from an
accelerometer that produces the input voltage signal v,(t).
0.1 uF
120 ΚΩ
10 ΚΩ
10 k2'
0+
V₁(1)
v₂(t)
V3(1)
· 40 ΚΩ
For a practical measurement situation, the signal v, is periodic and can be characterized
by the Fourier series:
v₂(t) = 1.6 sin (1,000) + 0.8 sin (2,000) + 0.4 sin (3,000+) + ....
The amplitude (volts) of the fundamental component in v(t) is most nearly:
A.
1.6
B.
1.13
C.
0.56
D.
0.3
