السؤال
Transcribed Image Text:

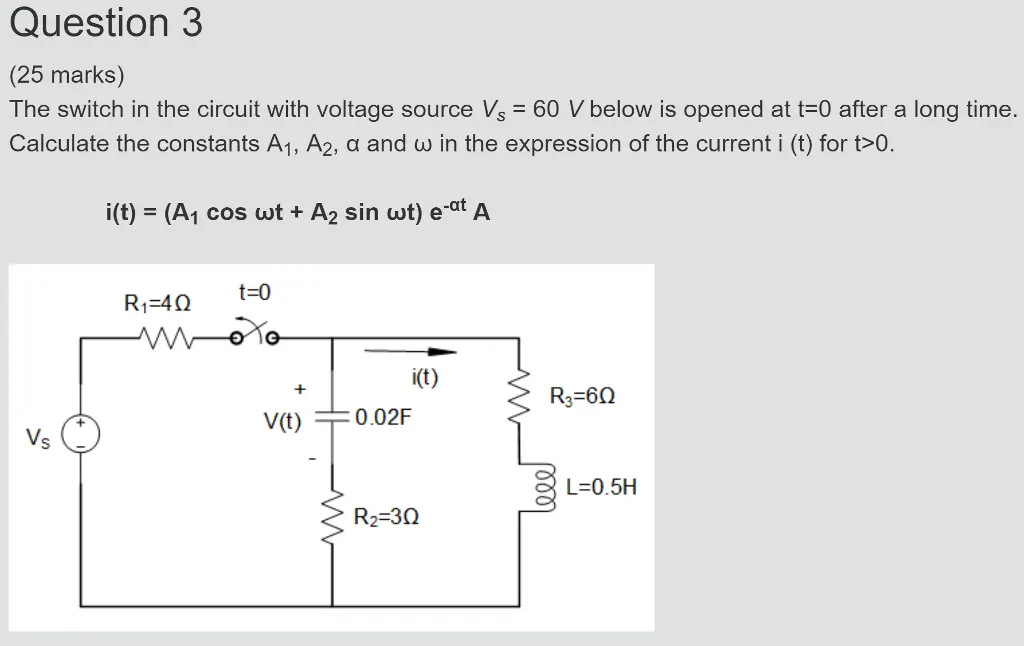

Question 3
(25 marks)
The switch in the circuit with voltage source Vs = 60 V below is opened at t=0 after a long time.
Calculate the constants A1, A2, a and w in the expression of the current i (t) for t>0.
i(t) = (A₁ cos wt + A2 sin wt) e-at
A
Vs
R₁=40
t=0
мото
+
V(t)
0.02F
i(t)
R3=60
L=0.5H
R2=30
