السؤال
Transcribed Image Text:

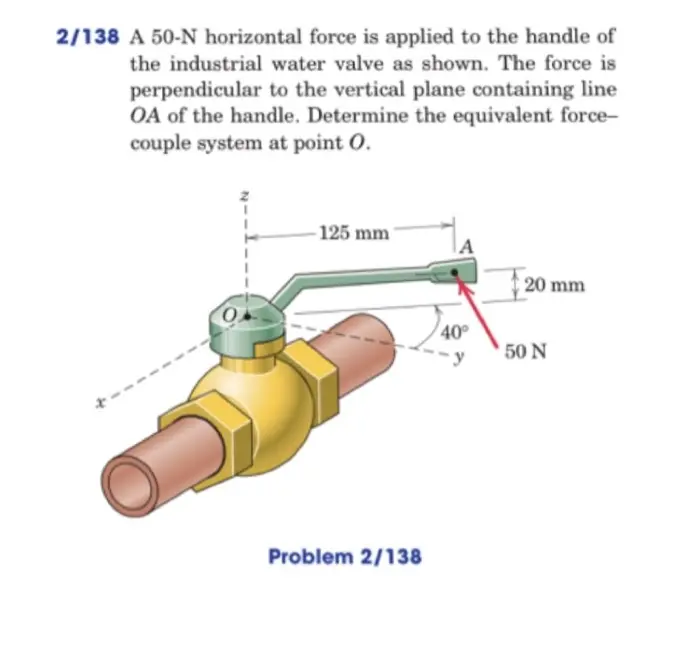

2/138 A 50-N horizontal force is applied to the handle of
the industrial water valve as shown. The force is
perpendicular to the vertical plane containing line
OA of the handle. Determine the equivalent force-
couple system at point O.
-125 mm
Problem 2/138
20 mm
40°
50 N
-y
