السؤال
Transcribed Image Text:

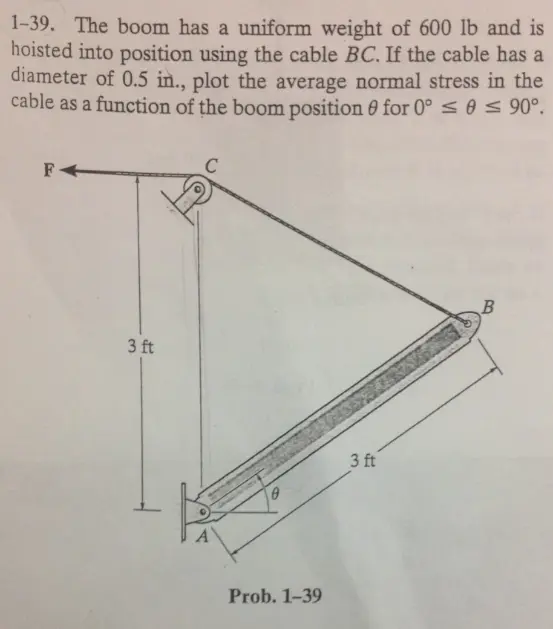

1-39. The boom has a uniform weight of 600 lb and is
hoisted into position using the cable BC. If the cable has a
diameter of 0.5 in., plot the average normal stress in the
cable as a function of the boom position for 0°
90°.
F
3 ft
C
Prob. 1-39
3 ft
B
