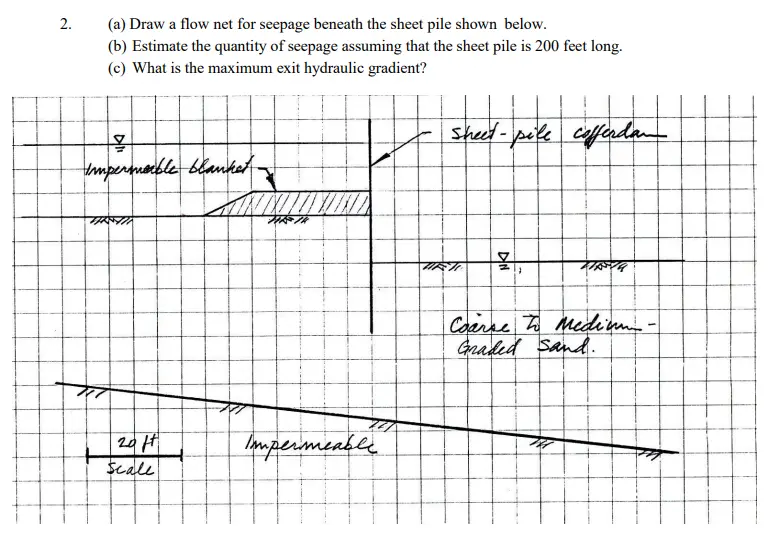

2. (a) Draw a flow net for seepage beneath the sheet pile shown below. (b) Estimate the quantity of seepage assuming that the sheet pile is 200 feet long. (c) What is the maximum exit hydraulic gradient? impermeable blanket. 20 Scale Impermeable sheet-pile cofferdan DN Coarse To Medium. Graded Sand.
