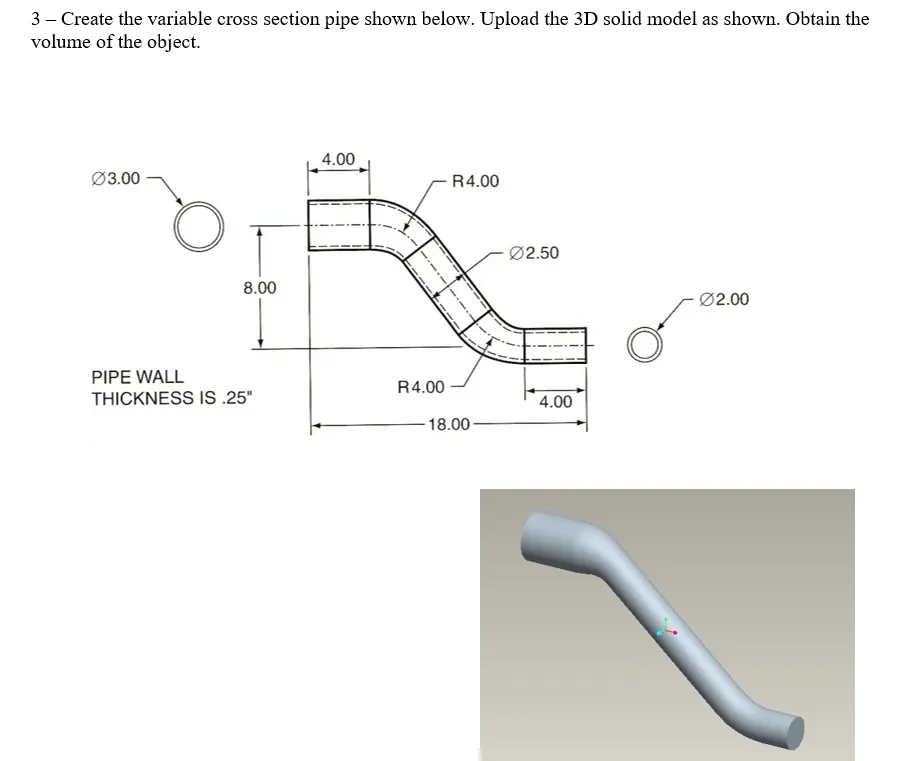

3- Create the variable cross section pipe shown below. Upload the 3D solid model as shown. Obtain the volume of the object. 03.00 O 8.00 4.00 R4.00 02.50 02.00 PIPE WALL R4.00 THICKNESS IS .25" 4.00 18.00 Mass Properties LAB 3 part 2.SLDPRT Override Mass Properties.... Include hidden bodies/components Create Center of Mass feature Show weld bead mass Recalculate Options... Report coordinate values relative to: Mass properties of LAB 3 part 2 Configuration: Default Coordinate system: default- Density 0.04 pounds per cubic inch Mass 0.41 pounds Volume 11.32 cubic inches Surface area 51.83 square inches Center of mass: (inches) x= 0.00 Y-0.00 Z= -0.68 default -- Principal axes of inertia and principal moments of inertia: ( pounds *squ Taken at the center of mass. lx (1.00, 0.00, 0.00) Px=0.50 ly (0.00, 1.00, 0.00) Py=0.50 Iz (0.00, 0.00, 1.00) Pz = 0.67 Moments of inertia: (pounds square inches) Taken at the center of mass and aligned with the output coordinate syst Lxx-0.50 Lyx 0.00 Lzx-0.00 Lxy-0.00 Lyy 0.50 Lzy 0.00 Lz = 0.00 Lyz 0.00 Lzz-0.67 Moments of inertia: (pounds square inches) Taken at the output coordinate system. bxx-0.70 lx-0.00 Ixy-0.00 Ivy 0.70 IXI = 009 lvz -0.00 Help Print Copy to Clipboard Х
