السؤال
Transcribed Image Text:

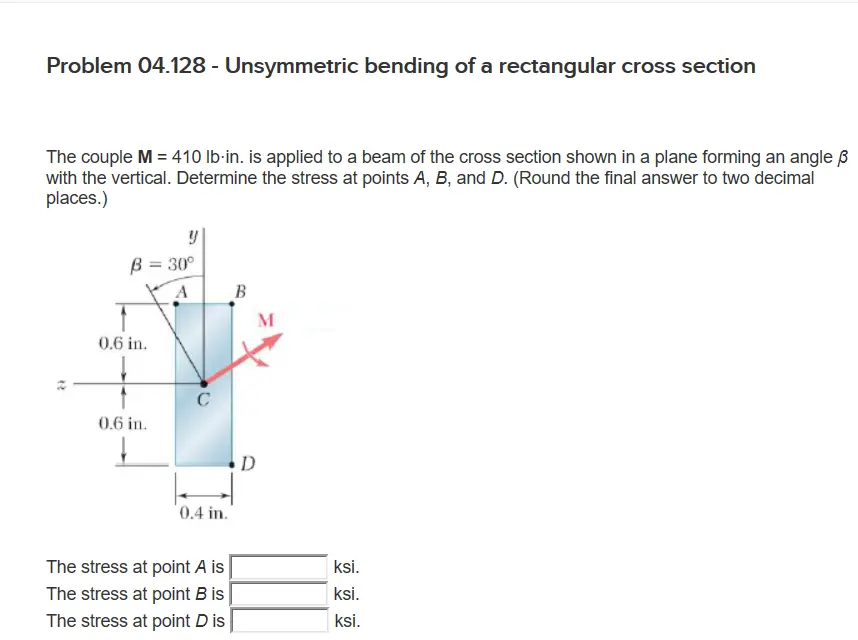

Problem 04.128 - Unsymmetric bending of a rectangular cross section
The couple M = 410 lb-in. is applied to a beam of the cross section shown in a plane forming an angle ẞ
with the vertical. Determine the stress at points A, B, and D. (Round the final answer to two decimal
places.)
B = 30°
0.6 in.
0.6 in.
A
B
M
C
0.4 in.
D
The stress at point A is
ksi.
The stress at point B is
ksi.
The stress at point D is
ksi.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
