السؤال
Transcribed Image Text:

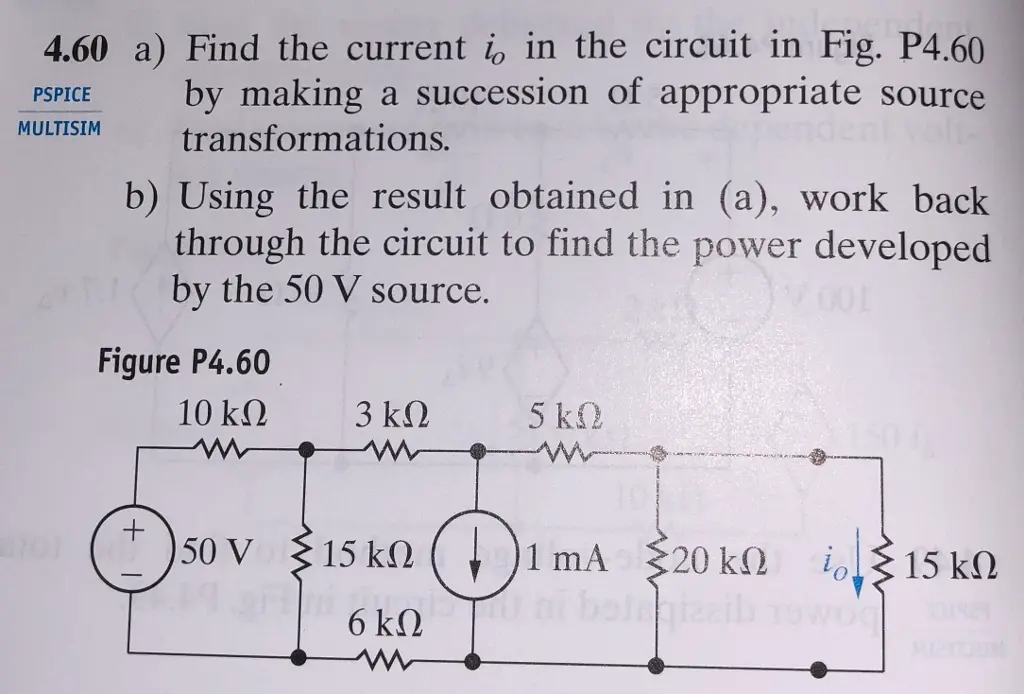

4.60 a) Find the current i, in the circuit in Fig. P4.60
PSPICE
MULTISIM
by making a succession of appropriate source
transformations.
volt-
b) Using the result obtained in (a), work back
through the circuit to find the power developed
by the 50 V source.
001
Figure P4.60
10 ΚΩ
3 ΚΩ
5 ΚΩ
w
50 V 15 kn
1 mA 20 k
io15 kn
6 ΚΩ
Ti so ju ni belgizaib 10wo
301929
MIZIJUM
