السؤال
Transcribed Image Text:

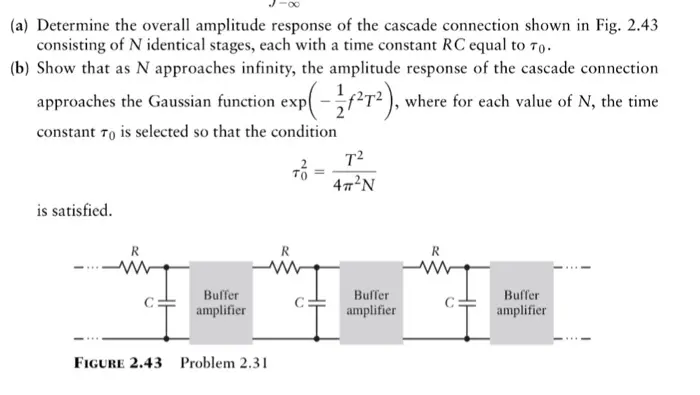

(a) Determine the overall amplitude response of the cascade connection shown in Fig. 2.43
consisting of N identical stages, each with a time constant RC equal to To.
(b) Show that as N approaches infinity, the amplitude response of the cascade connection
approaches the Gaussian function exp(-12121272), where for each value of N, the time
constant To is selected so that the condition
T²
4π2N
is satisfied.
Buffer
amplifier
FIGURE 2.43 Problem 2.31
Buffer
amplifier
Buffer
amplifier
