السؤال
Transcribed Image Text:
Figure 4.109
For Prob. 4.42.

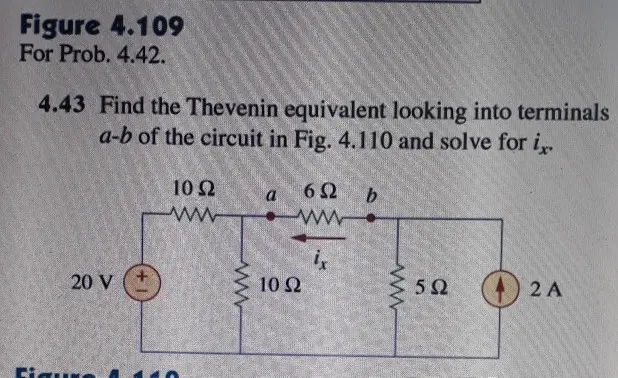

4.43 Find the Thevenin equivalent looking into terminals
a-b of the circuit in Fig. 4.110 and solve for ix.
20 V
10 Ω
a 6Ω
b
ww
www
ix
ww
10 Ω
www
50
2A
