السؤال
Transcribed Image Text:

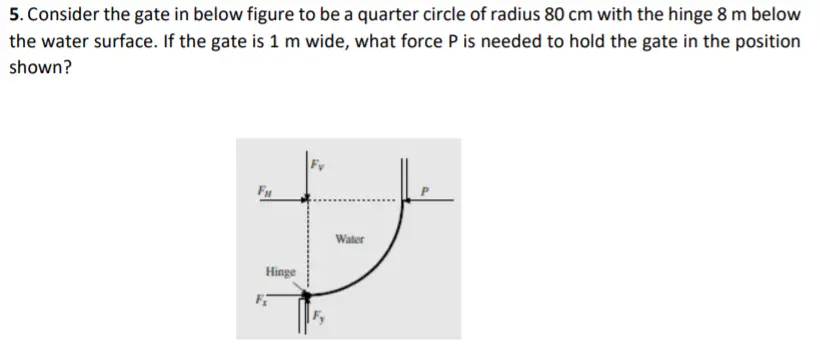

5. Consider the gate in below figure to be a quarter circle of radius 80 cm with the hinge 8 m below
the water surface. If the gate is 1 m wide, what force P is needed to hold the gate in the position
shown?
FH
F
Hinge
Water
